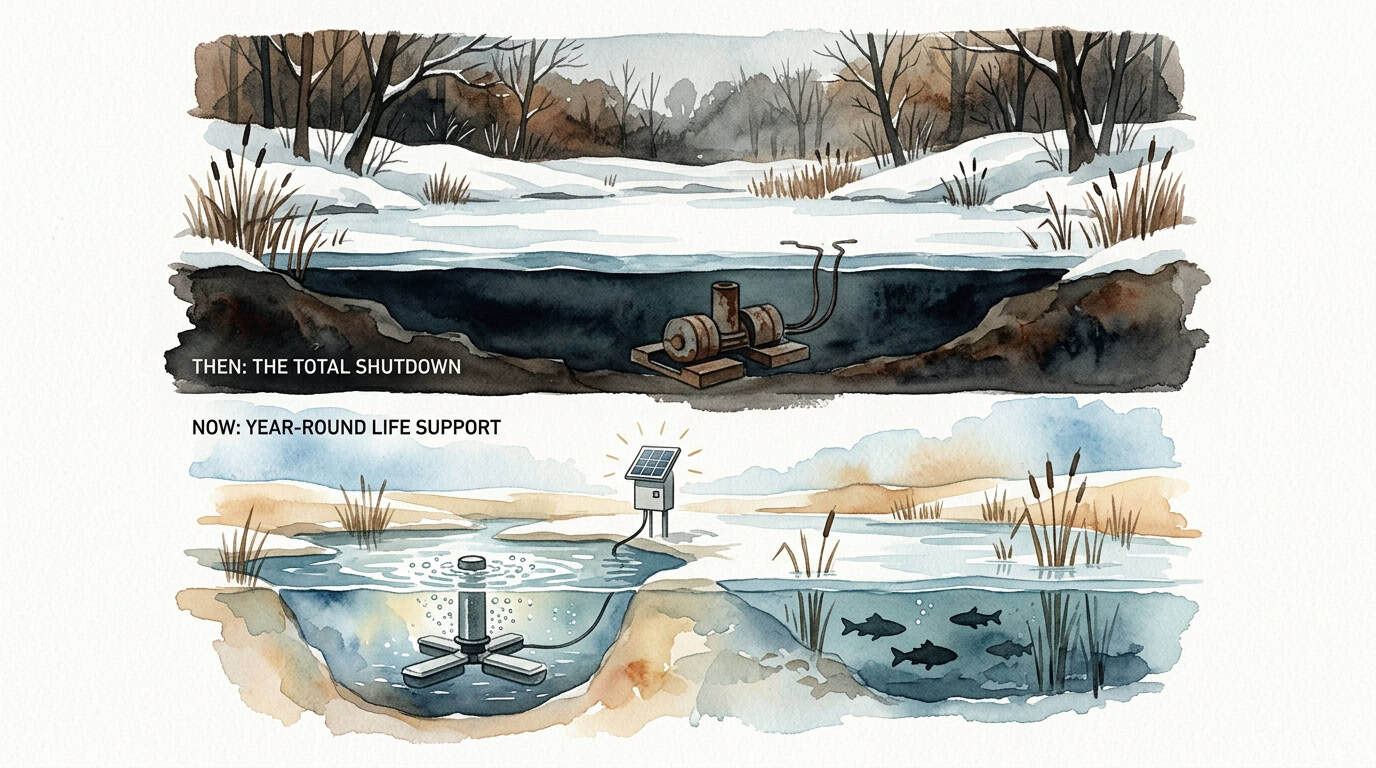

The old ‘shutdown’ method is killing your fish. See the modern way to winterize. Winterizing used to mean pulling the plug. Now, we know better. Discover why keeping the air moving is the best thing you can do for your pond’s health.
Traditional pond management often dictated a complete system shutdown during the winter months. This approach assumed that because biological activity slows in cold water, mechanical support becomes redundant. Technical data now proves this assumption incorrect. While metabolic rates of aquatic organisms decrease as temperatures drop, the accumulation of toxic gases and the depletion of dissolved oxygen (DO) under ice cover present a significant risk to biomass survival.
Modern winterization protocols prioritize gas exchange and the maintenance of a localized atmospheric interface. This transition from total shutdown to active “year-round life support” requires a deep understanding of fluid mechanics and gas solubility. By optimizing mechanical aeration for sub-freezing environments, practitioners can prevent “winterkill”—the mass mortality of fish due to anoxic conditions—while protecting equipment from structural damage caused by ice expansion.
This guide analyzes the mechanical, chemical, and thermal variables of winter pond management. It provides a technical framework for operating diffused aeration systems in cold climates, focusing on efficiency metrics and risk mitigation strategies.
Can You Run Pond Aeration All Winter?
You can and should run pond aeration during the winter, provided the system is configured to account for thermal stratification. In most temperate and boreal climates, aeration is the primary mechanism for maintaining an open hole in the ice. This opening acts as a “vent” for the escape of byproduct gases and a “portal” for atmospheric oxygen diffusion. Without this interface, the pond becomes a closed system where metabolic and decomposition byproducts reach lethal concentrations.
The core objective of winter aeration is not to oxygenate the entire water column—cold water naturally holds higher levels of dissolved oxygen—but to facilitate gas exchange. Oxygen solubility at 0°C is approximately 14.6 mg/L, nearly double the 8.2 mg/L capacity at 25°C. However, ice cover prevents the escape of carbon dioxide (CO2), methane (CH4), and hydrogen sulfide (H2S), the latter of which is toxic even at low parts-per-million (ppm) levels. Continuous aeration provides the kinetic energy necessary to prevent ice formation over the diffuser site, ensuring these gases vent safely.
Where winter aeration is used, it must be deployed with precision. Unlike summer aeration, which focuses on destratification and complete mixing, winter operation must respect the thermal refuge of the pond. In deep water bodies, water reaches its maximum density at 4°C (39.2°F). This “warm” water sinks to the bottom, providing a survival zone for fish. Improperly placed aerators can disrupt this layer, a phenomenon known as “super-cooling,” which can lead to thermal shock and mortality.
The Mechanics of Winter Gas Exchange
To understand why aeration is critical, one must analyze the chemical shift that occurs when a pond surface freezes. Under normal conditions, the water-atmosphere interface allows for the continuous diffusion of gases based on partial pressure gradients. When ice seals this surface, the pond’s “respiration” is essentially halted.
Toxic Gas Accumulation
Decomposition of organic matter (muck, leaf litter, and dead algae) continues in the benthos throughout the winter, albeit at a reduced rate. This anaerobic decomposition releases methane and hydrogen sulfide. In a closed system, these gases dissolve into the water column. Hydrogen sulfide is particularly dangerous because it interferes with the cellular respiration of fish, potentially causing death even if dissolved oxygen levels remain technically adequate.
Photosynthetic Shutdown
In summer, submerged plants and phytoplankton provide a significant percentage of the pond’s dissolved oxygen via photosynthesis. In winter, snow accumulation on ice blocks sunlight, effectively shutting down photosynthetic oxygen production. In many cases, these plants die and begin to decompose, further consuming the remaining oxygen reserves. Mechanical aeration replaces this lost biological oxygen source with a reliable atmospheric source.
How to Configure Your Aeration System for Winter
Operating a system in sub-zero temperatures requires specific adjustments to equipment placement and maintenance. The goal is to maximize gas exchange while minimizing the cooling of the lower water layers.
1. Diffuser Placement and Depth Adjustment
The most critical adjustment is the relocation of diffusers. In summer, diffusers are placed at the deepest point to maximize the volume of water moved. In winter, this must change. Placing a diffuser at the bottom during winter will mix the 4°C “warm” water with the freezing surface water. This lowers the overall temperature of the pond toward 0°C, increasing the risk of the pond freezing solid or the fish dying from cold stress.
Standard practice involves moving diffusers to a “shelf” or shallow area, typically 1/2 to 1/3 of the total depth. For a 12-foot deep pond, diffusers should be positioned at a depth of 4 to 6 feet. This maintains a hole in the ice for gas exchange while leaving the deep 4°C sanctuary undisturbed.
2. Compressor Cabinet Management
The air compressor must be protected from snow and moisture but require adequate ventilation. In extreme cold, the heat generated by the compressor can cause condensation within the air intake. This moisture can freeze in the airline, creating a blockage. Using a ventilated, insulated cabinet is essential. Some practitioners use a “wicking” system or moisture traps in the air lines to prevent ice plugs from forming.
3. Air Filter and Diaphragm Inspection
Cold air is denser, which increases the load on the compressor’s motor and diaphragms. Before the first hard freeze, air filters should be replaced to ensure maximum CFM (cubic feet per minute) output. A restricted filter forces the compressor to run hotter, which can prematurely wear out the EPDM diaphragms used in most linear and rocking piston pumps.
Technical Benefits of Winter Aeration
The shift to active winter management provides measurable improvements in pond health metrics. These benefits extend beyond fish survival to include the chemical state of the pond in the following spring.
- Maintenance of DO Saturation: Continuous surface agitation ensures that the water remains at or near oxygen saturation levels, preventing the stressful 2-3 mg/L “danger zone” for sensitive species like trout or large-mouth bass.
- Prevention of “Old Water” Syndrome: By venting CO2, the system helps maintain a stable pH. High CO2 levels can cause carbonic acid formation, leading to pH crashes that stress aquatic life.
- Reduction of Spring Algae Blooms: By facilitating the aerobic decomposition of organic muck throughout the winter, aeration reduces the nutrient load (phosphorus and nitrogen) available for algae once the water warms up in the spring.
- Structural Protection: The movement of water prevents the formation of thick, monolithic ice sheets that can exert thousands of pounds of pressure on docks, retaining walls, and pond liners.
Challenges and Common Mechanical Failures
While the benefits are clear, winter operation introduces specific failure modes that must be monitored. Failure to address these can lead to system damage or fish loss.
The “Super-Chill” Effect
This occurs when the air temperature is significantly below freezing (e.g., -20°F). The bubbles themselves carry this cold air through the water. If the turnover rate is too high or the diffusers are too deep, the entire pond’s temperature can drop below the threshold required for fish survival. This is why depth adjustment is mandatory, not optional.
Ice Dams and Condensation
Warm air coming from the compressor contains moisture. As this air travels through the weighted tubing buried in frozen ground or submerged in 0°C water, the moisture condenses. In extreme cases, this water freezes inside the tube, creating an “ice plug.” If the pressure builds too high, it can rupture the airline or burn out the compressor motor. Using larger diameter airlines (e.g., 5/8″ instead of 3/8″) can reduce the likelihood of a total blockage.
Power Interruptions
In many regions, winter storms lead to power outages. If an aeration system stops in sub-zero temperatures, the hole in the ice can freeze over within hours. When power is restored, the compressor may struggle to push air through the now-frozen water above the diffuser. Manual intervention (clearing the ice) may be required to restart the system safely.
Limitations: When Winter Aeration May Not Be Ideal
Despite its advantages, there are scenarios where running a full aeration system is impractical or counterproductive.
In very shallow ponds (less than 5 feet deep), there is no 4°C thermal layer to protect. In these cases, aeration may cause the entire water column to freeze more quickly due to heat loss at the surface. For these ponds, a localized de-icer or “pond heater” is often a better choice. A de-icer uses a heating element to maintain a small opening without circulating the entire pond volume, thus preserving what little heat remains in the water.
Another limitation is the cost-to-benefit ratio for ornamental ponds without fish. If the goal is simply to keep the pond from freezing solid, the electricity cost of running a high-CFM compressor may outweigh the benefits. For these “show ponds,” a complete shutdown and removal of pumps to prevent freeze-cracking is often the most efficient mechanical strategy.
Comparison: Shutdown vs. Winter Aeration
The following table compares the two primary methods of winter pond management based on technical and operational metrics.
| Factor | Total Shutdown | Modern Winter Aeration |
|---|---|---|
| Fish Survival Rate | Variable; high risk of winterkill in snow years. | High; maintained via gas exchange. |
| Oxygen Levels | May drop below 3 mg/L (anoxic). | Maintained at 10-14 mg/L. |
| Toxic Gas (H2S/CO2) | Accumulates under ice. | Continuously vented to atmosphere. |
| Maintenance Effort | Low (seasonal removal only). | Moderate (filter checks, depth adjustment). |
| Spring Startup | Difficult; high muck/algae load. | Seamless; cleaner water column. |
Practical Tips and Best Practices
Implementing a successful winter aeration program requires attention to detail. These practices ensure the longevity of the equipment and the safety of the pond inhabitants.
- Mark the Aeration Site: Because aeration keeps the ice thin or open, it creates a safety hazard for humans and animals. Use reflective stakes or “Danger: Thin Ice” signs around the pond perimeter to prevent accidental falls.
- Use Sinking Air Lines: Avoid using standard vinyl tubing that floats. In winter, floating lines can become encased in surface ice and may be torn or punctured as the ice shifts. Self-sinking weighted tubing stays on the pond bottom, protected from ice movement.
- Gradual Depth Changes: When moving diffusers to shallower water in the late fall, do so before the water temperature drops below 50°F (10°C). This allows the fish to adjust their “winter stations” before they enter a state of torpor.
- Monitor Pressure Gauges: If your system has a pressure gauge, check it weekly. A sudden spike in PSI indicates a potential ice blockage in the line. A drop in PSI suggests a leak or a failing diaphragm.
Advanced Considerations: Calculating Winter Turnover
For serious practitioners managing larger ponds or lakes, the “turnover rate” is a critical metric. In summer, the goal is often to turn over the entire volume 1-2 times per 24-hour period. In winter, this requirement is significantly lower because the biological oxygen demand (BOD) is reduced.
Over-aerating in winter is a common technical error. If you are moving too much water, you risk eliminating the 4°C thermal layer entirely. Practitioners should aim for a “localized turnover.” This involves calculating the volume of the “venting zone” (the area around the diffuser) rather than the entire pond. A compressor that provides 1-2 CFM per diffuser is typically sufficient to keep a 5-10 foot diameter hole open even in sub-zero temperatures, without over-cooling the deeper regions.
Consider the use of a variable frequency drive (VFD) or a simple timer if your compressor is oversized for winter needs. Running the system for 12 hours a day (during the coldest night hours) may be sufficient to maintain the opening while reducing electricity consumption and mechanical wear.
Example Scenario: A 1-Acre Pond in the Midwest
Consider a 1-acre pond with a maximum depth of 15 feet located in an area with average winter temperatures of 20°F. In the summer, the owner runs a 1/2 HP rocking piston compressor with two diffusers placed at 14 feet. This configuration provides a full turnover twice daily.
For winter, the protocol shifts. The owner moves the diffusers from 14 feet to a shelf at 6 feet depth. One diffuser is shut off entirely to reduce total air volume and prevent super-cooling. The remaining diffuser operates 24/7. This maintains a 15-foot diameter opening in the ice. Despite a 4-month freeze and 12 inches of snow cover, the dissolved oxygen remains at 12 mg/L. In the spring, the pond exhibits 30% less algae growth compared to years when the system was shut down, as the aerobic bacteria remained active in the shallow zones throughout the winter.
Final Thoughts
The decision to keep pond aeration running through the winter is supported by the physics of gas solubility and the biological needs of aquatic ecosystems. Transitioning from the “shutdown” mindset to a “life support” strategy ensures that fish are not subjected to the toxic conditions inherent in closed, ice-covered systems. By prioritizing gas exchange over complete mixing, you protect both your biological investment and your mechanical hardware.
Success in winter aeration hinges on the technical details: moving diffusers to shallow depths, protecting compressors from moisture, and monitoring for ice dams. These small operational adjustments make the difference between a thriving spring pond and the costly cleanup of a winterkill event. As you refine your winterization process, focus on the data—maintain your DO levels, vent your toxic gases, and respect the thermal boundaries of the water column.
Experimenting with different diffuser depths and run times will help you find the “sweet spot” for your specific climate and pond morphology. For those looking to further optimize their systems, exploring remote monitoring tools for DO and temperature can provide the real-time data needed to make even more precise adjustments during the harshest months of the year.
